CATL-KSTAR

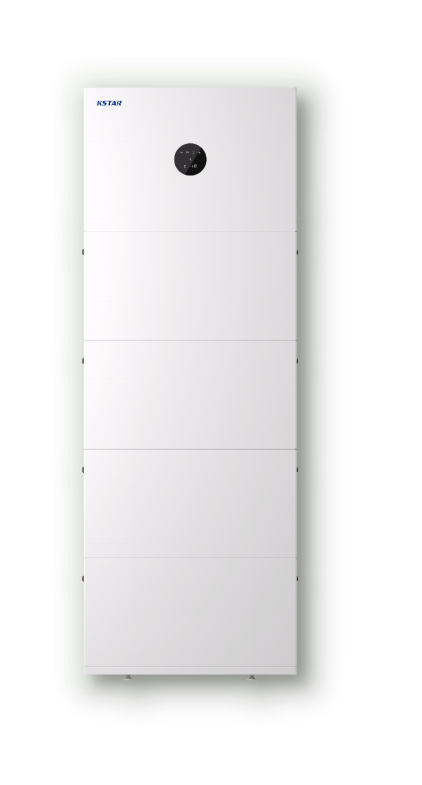

Three phase optical storage integrated machine
E10KT
The three-phase energy storage all-in-one machine aims to provide you with an intelligent and convenient integrated optical storage solution. With advanced modular design, it integrates important components such as energy storage inverters, switch boxes, batteries, and battery cabinets, making installation and use extremely convenient. Multiple working modes are intelligently controlled, flexibly realizing power scheduling, storage, and load management, helping you easily become the owner of electricity. At the same time, the compact and elegant appearance design perfectly integrates modern home furnishings, and the inverter has an IP65 protection level, suitable for various indoor and outdoor installation needs.
技术参数
E10KT
| 逆变器型号 | BluE-S 10KT | |
|---|---|---|
| 输入参数(直流) | ||
| 最大光伏接入容量 | 20kW | |
| 最大直流电压 | 1100V | |
| 启动电压 | 200V | |
| MPPT电压范围 | 140V-1000V | |
| 满载MPPT电压范围 | 420V-850V | |
| 额定输入电压 | 720V | |
| MPPT路数 | 2 | |
| 每路MPPT最大接入组串数 | 1 | |
| 每路MPPT最大输入电流 | 15A | |
| 每路MPPT最大短路电流 | 20A | |
| 输出参数(交流) | ||
| 额定交流输出功率 | 10kW | |
| 最大交流视在功率 | 11kVA | |
| 额定交流电压 | 400Vac,3P+N+PE | |
| 交流电网频率范围 | 50/60Hz | |
| 额定输出电流 | 14.5A | |
| 最大输出电流 | 16A | |
| 功率因数(cosΦ) | 0.8超前-0.8滞后 | |
E10KT
| 逆变器型号 | BluE-S 10KT | |
|---|---|---|
| 电池输入 | ||
| 电池类型 | LFP(LiFePO4) | |
| 额定电池电压 | 48V | |
| 充电电压范围 | 40V-60V | |
| 最大充电电流 | 160A | |
| 最大放电电流 | 200A | |
| 电池容量 | 200-800Ah | |
| 锂电池充电策略 | 取决于BMS | |
| 交流输出(离网端) | ||
| 最大输出视在功率 | 10kVA | |
| 最大输出电流 | 16A | |
| 额定输出电压 | 400V | |
| 额定输出频率 | 50/60Hz(±2%) | |
| 输出电压谐波(@线性负载) | ＜3%(线性负载) | |
| 效率 | ||
| 最大效率 | 97.6% | |
| 欧州效率 | 97.0% | |
E10KT
| 逆变器型号 | BluE-S 10KT | |
|---|---|---|
| 保护 | ||
| 防孤岛保护 | YES | |
| 输出过流保护 | YES | |
| 直流反接保护 | YES | |
| 组串故障检测 | YES | |
| 交流/直流浪涌保护 | DC Type Ⅱ;AC Type Ⅲ | |
| 绝缘阻抗检测 | YES | |
| 交流短路保护 | YES | |
| 常规参数 | ||
| 尺寸(宽x高x厚) | 540*590*240mm | |
| 重量 | 49kg | |
| 操作温度范围 | -25℃~+60℃（>45℃降额） | |
| 噪声(dB) | ＜25 | |
| 冷却方式 | 自然散热 | |
| 最高工作海拔 | 2000m | |
| 工作湿度 | 0~95%(不凝露) | |
| 防护等级 | IP65 | |
| 电路拓扑 | 电池隔离 | |
| 通讯 | RS485/CAN2.0/WIFI/4G | |
| 显示 | LCD/APP | |
| 认证&标准 | IEC/EN 62109-1;IEC/EN61000-6-1;IEC/EN61000-6-2;EN61000-6-3;IEC/EN61000-6-4; IEC/EN61000-3-11;EN61000-3-12;IEC60529;IEC60068;IEC61683;IEC62116;IEC61727; EN50549-1;AS 4777.2;NRS 097;VDE-AR-N-4105;CEI0-21;G98;G99;C10/C11 |
|
